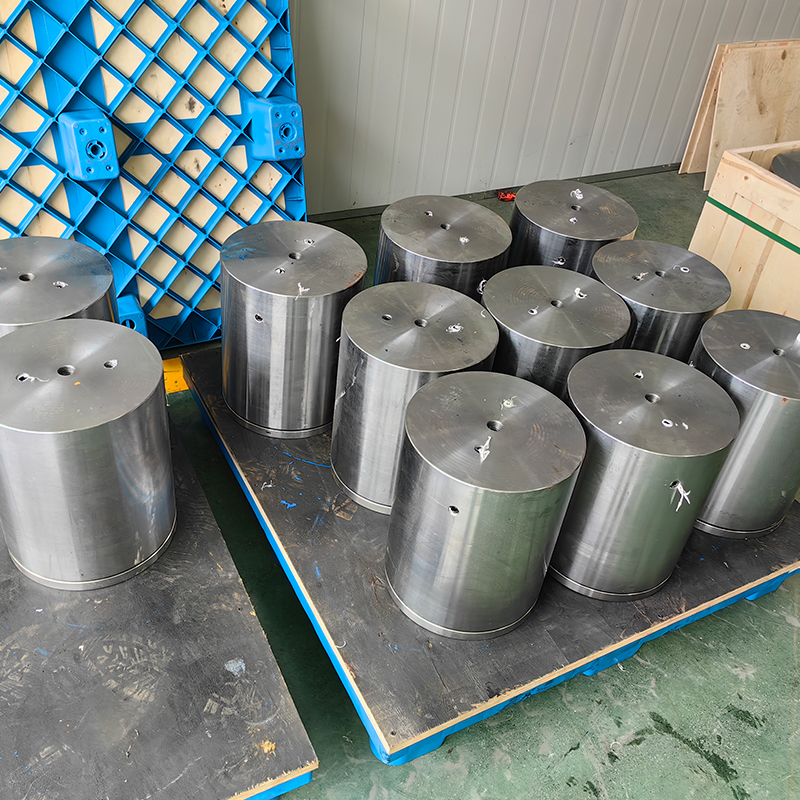

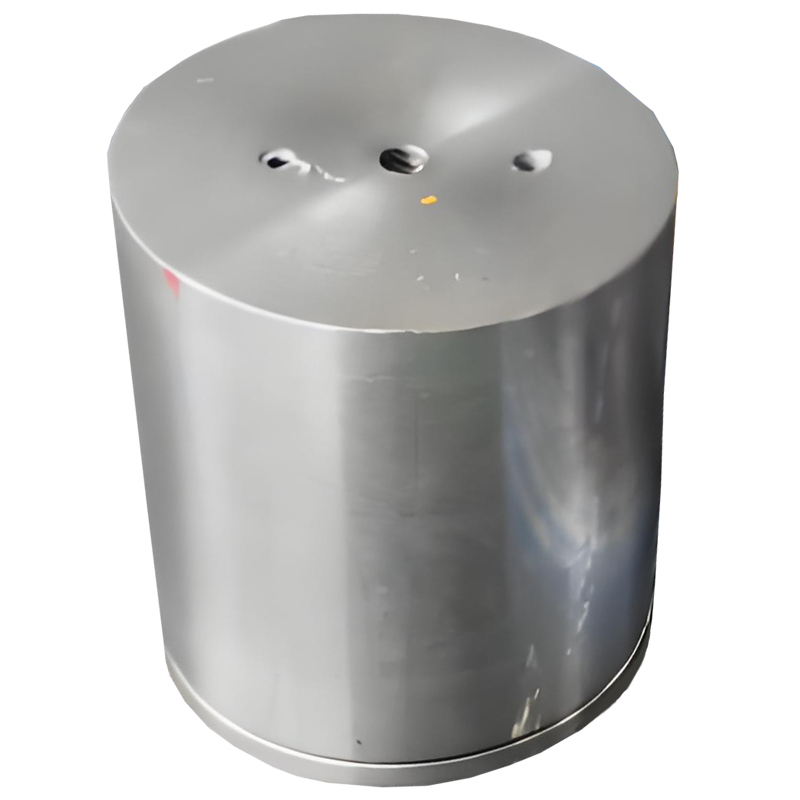

>> High-strength forged cylinders, enhancing overall reliability.
>> Precision engineering for top performance.
>> Max. working pressure as high as 50MPa| 7252psi, max.stroke 150mm|5.91in.
Specifications:
|
Capacity |
Stroke (mm) |
Max. Pressure at Max. Load |
Diameter of Single Jack (mm) |
| 32T | 150 | 50MPa | 108 |
| 42T | 150 | 50MPa | 133 |
| 66T | 150 | 50MPa | 159 |
| 86T | 150 | 50MPa | 180 |
| 100T | 150 | 50MPa | 194 |
| 120T | 150 | 50MPa | 219 |
| 150T | 150 | 50MPa | 245 |
| 300T | 150 | 50MPa | 325 |
>> We possess the largest jack-pressure-testing facility in the industry, capable of handling loads of up to 60MN in a single direction. The CNAS-certified organization has set up a laboratory in the Ougan factory to facilitate the certification process for large-capacity hydraulic jacks.
>> All jacks are conducting pressure test calibration before delivery. The videotaped testing process is available upon request.
>> Each jack comes with CNAS calibration reports, providing a further guarantee of its accuracy and performance.
>> Ougan is the first one in China to obtain CE certification for hydraulic jacks, with a manufacturing base certified in ISO9001:2015 standards.
Product Liabitity Insurance Provided by PlCC：
We have insured our Super Cell by PICC, adding extra security for you. You can trust us with confidence.
